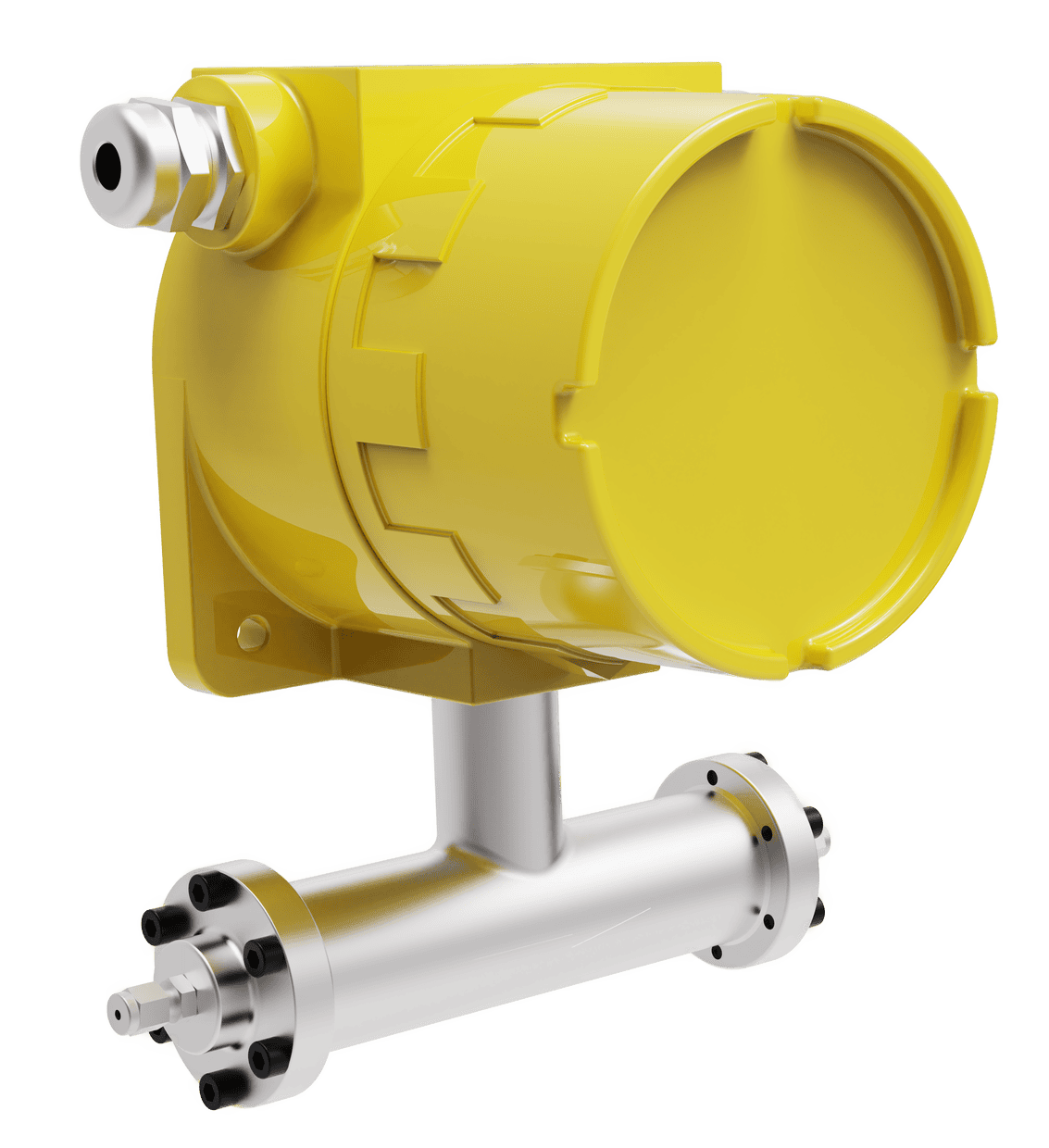

Two-phase suspended-density (volume fraction) monitor for gas phase and slurry catalyst streams. Using capacitance-tomography principles, it monitors both pulsed and continuous feed systems. Helps operators stabilize dosing and reduce upsets.
No pressure drop or flow impact to catalyst feed stream
Designed for continuous, real-time flow monitoring in demanding process environments.
Immediate detection of catalyst feeder clogging or leaking
OLED display reports measurements locally
4 x user selectable 4–20 mA outputs
On-screen menu to configure parameters and select outputs
ATEX/IECEx (Ex db IIC T4 Gb, Ex tb IIIC T80C Db)
UL Class I, Division 2 Groups A, B, C, and D
IP66 rating
Pressure tested to 10 Mpa
Ambient Temperature Range: -40°C to 80°C
Process pressures up to 10 Mpa
Explosionproof enclosure is 14.2cm (5.6“) in diameter, 14.5cm (5.7“) long
